12V 24V Electric 3D Printer Cartridge Heaters

12V 24V Electric 3D Printer Cartridge Heaters

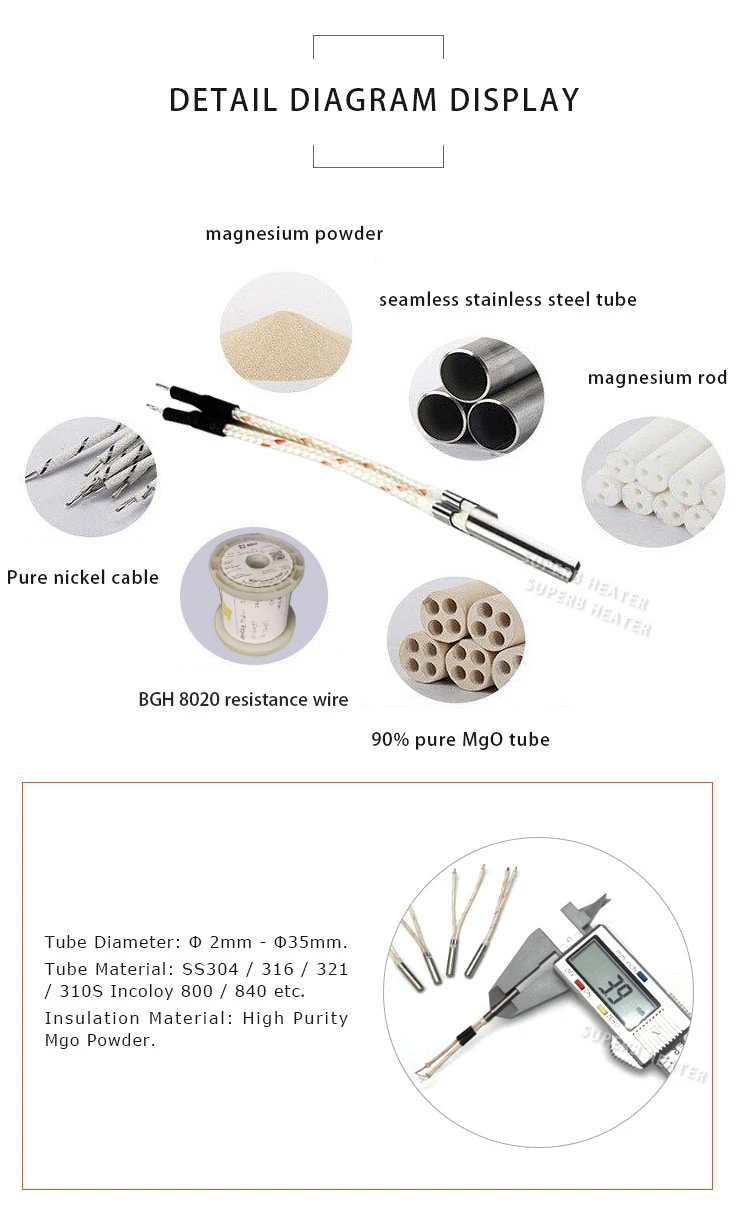

Cartridge Heaters High-grade nickel chromium resistance wire,MgO core, Stainless steel tubing, Stranded leads with silicon-impregnated mica glass insulation, or swaged in Special sizes, wattages, and materials are available upon request

Features:

1. Thermal insulation performance: AC 1000V 50HZ duration 1MIN no breakdown phenomenon;

2. Leakage current <0.5MA; insulation resistance >30MΩ;

3. Power deviation +5%, -10%; surface load up to 25W per square centimeter;

4. tubu diameter: 3mm - 30mm

5.tube length: 40mm - 1000mm

6.tube material: SUS304, SUS321,INCOLOY800,etc.

7. Conditions of use: ambient temperature -20 ° C ~ +60 ° C, relative temperature <80%;

8. Electrical strength: cold state withstand voltage AC work 1500V 50HZ duration 1MIN no breakdown phenomenon;

9.lead-out wire length: 300mm, or clients requriement.

10.lead out wire type: PTFE wire, Silicone wire,etc.
