How to Balance Three-Phase Electrical Loads When Using Multiple PTFE Heaters in a Single Tank

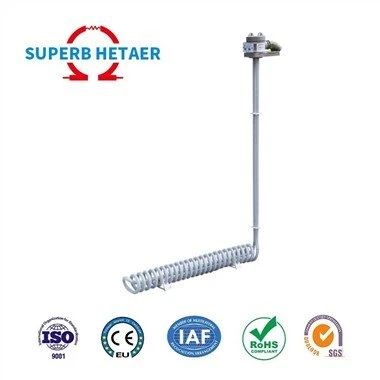

A plating tank may contain six or eight PTFE immersion heaters, all single phase. If they are all on the same phase in the facility panel the outcome is a heavily unbalanced load, voltage drop and possibly breaker trips. The proper distribution of phase is a critical but frequently overlooked part of tank heating design.

Understanding the Phase Imbalance Problem
Serious electrical implications may emerge from the imbalance when several PTFE heaters are coupled to a single-phase supply. If heaters are not balanced among the three phases available, the facility electrical system may experience surplus neutral current, transformer overheating and nuisance tripping of main breakers. This imbalance might result in operational inefficiency and equipment damage. In the case of three phase supply the entire heater wattage should be divided as evenly as feasible over all three phases to avoid these problems.

Distributing Three Phase Loads Across Multiple PTFE Heaters
In practice, balancing the electrical load throughout the phases is a simple process that dramatically boosts system performance. For an array of single phase 220V heaters, a good technique to achieve load balancing is to connect each succeeding heater to a separate phase. You can use the following distribution method:

L1, L2, L3, L1, L2, L3,...

This way each phase is carrying about the same current . This helps to keep voltage steady and prevents overload on any one phase . However, once the total heater wattage per phase is over 5-6 kW it becomes more difficult to balance the load across phases and the system design may need to be considered more carefully.

Three Phase Heaters for Larger Loads
If the total wattage of heater is about 5-6 kW/heater and above, the best approach for heating applications is generally to specify three-phase immersion heaters. Three phase heaters balance the load naturally making for easier wiring and less chance of voltage imbalance. These heaters come in two common setups:

Configuration Delta

Wye-Configuration

Both arrangements will provide balanced load sharing but the choice of design will rely on the unique electrical supply and application needs.

Heater Specification Decision Tree
Simple decision tree to guide the choice of heaters based on total wattage:

Three-phase available? Total kW > 10 kW?

Yes, please specify three phase heaters.

No → Spread single phase heaters uniformly across phases.

This maintains balance in the electrical system, helping to avoid typical electrical problems such as tripped breakers, overheating, and instability in the system.

Three-Phase Load Balancing: Real World Considerations
In the design of the electrical circuit for a tank heating system, the phase imbalance should be as little as feasible, ideally, at a voltage differential between phases of 2-3%. This minor mismatch can often be compensated for by careful load balancing or by using three-phase heaters.

Other than load balancing , you 're also looking at total wattage and the capacity of the electrical panel in the facility . If the overall load exceeds the capacity of the panel, further examination of the electrical system may be necessary to prevent overloads and assure safe operation.

Conclusion: The need for mindful electrical design
A deliberate phase balancing during the design phase of a PTFE heating system is important to avoid electrical problems and to allow a dependable and code-compliant operation. Spreading the heaters uniformly over the phases or ordering three-phase heaters for greater loads will result in a more stable and efficient electrical system. Electrical design is a vital concern when specifying equipment for industrial applications as it plays a major impact in the overall operation and lifetime of PTFE heating systems.
