How to use the T-type thermocouple index table

1. What is a T-type thermocouple index table?

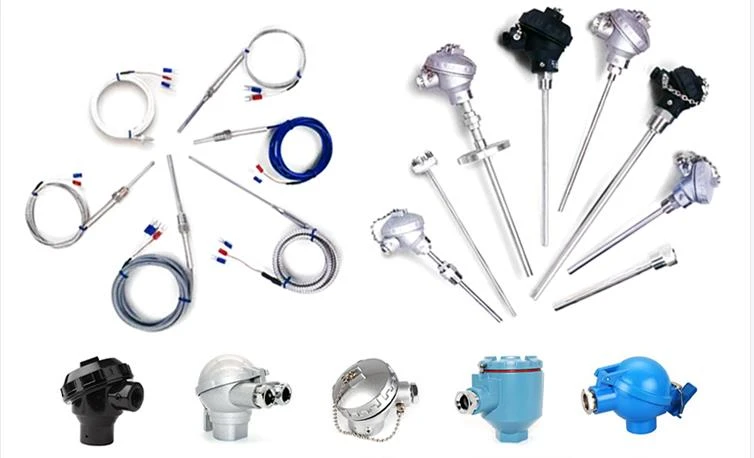

The T-type thermocouple index meter is a tool used for temperature measurement, consisting of probes made by spot welding two different metals (usually copper and nickel, but can also be other metals).

How to use the T-type thermocouple calibration table correctly?
Firstly, ensure that the connection of the T-type thermocouple index meter is not damaged or loose. Then, contact the end of the thermocouple probe with the surface of the object to be tested to ensure tight contact.

Next, the connector of the thermocouple index meter needs to be inserted into the corresponding socket of the thermometer or other temperature measuring equipment. Ensure proper insertion depth and good contact.

3. How to read the temperature measurement results of the T-type thermocouple scale?
After confirming that the wiring of the temperature measurement equipment is correct, the temperature value of the T-type thermocouple scale can be read, usually in degrees Celsius.

The T-type thermocouple index table is designed based on the relationship between temperature and electromotive force. At different temperatures, the electromotive force of the T-type thermocouple index meter will change. By comparing the display of the measuring equipment with the T-type thermocouple scale, the measured temperature can be obtained.

4. Precautions
When using a T-type thermocouple index table, the following precautions should be taken:

Ensure that the wiring of the T-type thermocouple index meter is correctly connected to avoid inserting the wrong socket.

The contact area should be large enough to ensure accurate heat transfer.

Avoid using in environments with high temperatures or strong electromagnetic fields to avoid affecting the accuracy of temperature measurement.

The use of a T-type thermocouple index meter can help us accurately measure temperature, and it is widely used in scientific research, industrial production, and other fields.
