The core differences between household and industrial single-head electric heating elements in terms of power and materials

Single-ended heating elements are common heating components widely used in both domestic and industrial applications. While both convert electrical energy into heat, significant differences exist in power design and material selection due to variations in usage environment, heating requirements, and durability. The following analysis breaks down these differences and their underlying logic from two core dimensions: power and materials.

I. Power Dimension: Suitable Scenarios Determine Power Design, Significant Differences

Power is the core indicator of a heating element's heating capacity. The power difference between domestic and industrial single-ended heating elements essentially reflects the difference in adaptability to scenarios of "low power, low load" versus "high power, high load," specifically in power range, power density, and control methods.

1. Power Range: Domestic - Lower and More Concentrated, Industrial - Higher and More Varied

Domestic single-ended heating elements primarily serve small household appliances, heating small-volume media such as water and air. They also need to be compatible with the 220V household voltage. Therefore, their power design is generally lower and more concentrated. Standard power ranges from 500W to 3000W, commonly found in electric kettles, water heaters, small space heaters, and household ovens. For example, the single-head heating element in a mini household electric kettle typically has a power of 1000W-1500W, sufficient for rapid heating without overloading the household circuit.

Industrial single-head heating elements need to handle the heating requirements of large equipment and large-volume media (such as industrial oil, high-temperature air, and metal workpieces), and are compatible with 380V industrial three-phase voltage. Their power design is generally higher and varies greatly. The standard power range is 3000W-50000W, and in some special scenarios (such as large industrial furnaces and high-temperature reactors), the power of heating elements can exceed 100,000W. For example, single-head heating elements in industrial oil bath heating equipment typically have a power of 5000W-20000W, requiring the rapid heating of large quantities of industrial oil and the maintenance of a stable high temperature.

2. Power Density: Moderate for Home Use to Prevent Dry Burning, Higher for Industrial Use Requires Stronger Heat Dissipation

Power density (power per unit area) directly affects the lifespan and safety of heating elements. In home use, user operation is often less standardized, leading to dry burning and insufficient heating medium. Therefore, home single-ended heating elements need to have controlled power density to prevent overheating and damage to components or safety accidents. Their power density is typically 1-3 W/cm², reducing the risk of dry burning while also being compatible with the simple heat dissipation structures of home appliances.

In industrial settings, the heating medium is often fluid, such as oil, air, or highly thermally conductive metals, and the equipment is equipped with professional cooling systems (such as forced air cooling or circulating water cooling). Therefore, industrial single-ended heating elements can use higher power densities to improve heating efficiency. Their power density is typically 3-10 W/cm², and in some high-temperature industrial applications (such as metal heat treatment), it can reach over 15 W/cm². High power density enables rapid heating to meet the efficiency requirements of industrial production.

3. Control Methods: Simple for Home Use, Precise and Stable for Industrial Use

Household single-ended heating elements offer simple power control, often employing an on/off control mechanism. Combined with basic components like temperature fuses and thermostats, they achieve heating within a fixed temperature range (e.g., an electric kettle automatically shuts off at 100℃). No complex power adjustment functions are required, making them suitable for the simple operation needs of home users.

Industrial single-ended heating elements must meet the stringent temperature accuracy requirements of industrial production. Power control typically employs methods such as stepless speed regulation and PID constant temperature control, allowing for precise adjustment of power output according to production process requirements, maintaining the medium temperature error within ±1℃. Furthermore, industrial heating elements are often paired with temperature sensors and PLC control systems to achieve automated power adjustment, adapting to continuous, high-precision industrial production processes.

II. Material Dimension: Environmental Needs Determine Material Selection, Different Emphases

The material of the heating element directly affects its high-temperature resistance, corrosion resistance, thermal conductivity, and service life. Due to differences in the operating environment (temperature, medium, corrosiveness), household and industrial single-ended heating elements prioritize different aspects in the selection of core materials such as tubing, heating wire, and insulation. The core logic is: "Household applications prioritize safety and durability, while industrial applications prioritize high-temperature resistance and corrosion resistance."

1. Tubing Material: Household applications prioritize safety and ease of processing, while industrial applications prioritize high-temperature resistance and corrosion resistance

The tubing is the outer protective structure of a single-ended heating element, directly contacting the heating medium. Its material must be adapted to the characteristics of the medium and temperature requirements. The heating medium for household single-ended heating elements is mostly neutral media such as water and air, with a temperature range of 0-150℃. Therefore, 304 stainless steel is commonly used for the tubing, with some lower-end products using copper. 304 stainless steel offers good corrosion resistance and ease of processing, and meets food contact safety standards (e.g., heating elements in electric kettles and rice cookers). Copper, on the other hand, boasts excellent thermal conductivity but slightly lower corrosion resistance, and is primarily used in small-scale heating equipment.

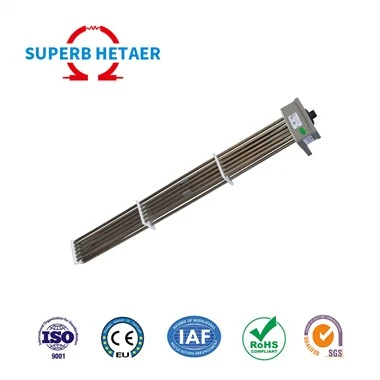

Industrial single-ended heating elements handle complex heating media (e.g., industrial acid and alkali solutions, high-temperature oils, corrosive gases) and have a wide temperature range (from room temperature to over 800℃), thus requiring higher-performance materials for the tubing. Common materials include 316 stainless steel, 310S stainless steel, and Incoloy alloy. 316 stainless steel offers superior corrosion resistance compared to 304, making it suitable for industrial environments containing slightly corrosive media (e.g., solution heating in the chemical industry). 310S stainless steel exhibits strong high-temperature resistance, withstanding temperatures above 800℃, making it suitable for high-temperature air heating and metal heat treatment. Incoloy alloy combines high-temperature resistance (up to 1200℃) with strong corrosion resistance, making it suitable for extreme industrial environments involving strong acids, strong alkalis, and high temperatures and pressures (e.g., heating in petrochemical reactors).

2. Heating Wire Material: Household applications prioritize cost-effectiveness, while industrial applications prioritize high-temperature stability.

The heating wire is the core heating element of an electric heating element, and its material determines the rated temperature and lifespan of the heating element. Household single-ended heating elements operate at lower temperatures, so the high-temperature stability requirements for the heating wire are not high. Therefore, iron-chromium-aluminum wire (FeCrAl) is commonly used, with some lower-end products using nickel-chromium wire (NiCr). FeCrAl wire is less expensive, has stable resistance, and can meet the heating needs of household applications from 0-300℃, with a lifespan of approximately 1000-3000 hours, adapting to the frequent replacements of household appliances.

Industrial single-ended heating elements need to operate under high temperature and high load conditions for extended periods, requiring extremely high high-temperature stability and oxidation resistance of the heating wire. Therefore, high-quality nickel-chromium wire (such as Cr20Ni80) or Inconel alloy wire are often used. Cr20Ni80 nickel-chromium wire can withstand temperatures up to 1200℃, has strong oxidation resistance, and a service life of approximately 5000-10000 hours, making it suitable for most medium- and high-temperature industrial applications. Inconel alloy wire can withstand temperatures up to 1400℃ and exhibits excellent mechanical strength and corrosion resistance at high temperatures, making it suitable for extreme high-temperature and corrosive industrial environments, with a service life exceeding 10000 hours.

3. Insulation Materials: Household applications prioritize safety insulation, while industrial applications prioritize high-temperature insulation stability.

The insulation material fills the space between the heating wire and the tubing, serving both insulating and heat-conducting functions. Its insulation performance directly affects the safety of the heating element. Household single-ended heating elements operate at lower temperatures, and the insulation material is mostly magnesium oxide powder (MgO), with some products using alumina powder. Magnesium oxide powder has good insulation properties, moderate thermal conductivity, and low cost, meeting the insulation requirements of household applications. It also maintains stable performance at temperatures of 100-200℃ and is not prone to aging.

Industrial single-ended heating elements operate at high temperatures, sometimes exceeding 800℃. Ordinary magnesium oxide powder is prone to aging and decreased insulation performance at high temperatures, necessitating the use of high-quality insulating materials such as high-temperature modified magnesium oxide powder and alumina ceramic powder. High-temperature modified magnesium oxide powder undergoes special treatment, maintaining excellent insulation and thermal conductivity even at temperatures above 800℃, reducing the likelihood of leakage or short circuits. Alumina ceramic powder exhibits even stronger high-temperature resistance, withstanding temperatures above 1200℃, making it suitable for extreme high-temperature industrial applications and ensuring long-term stable operation of the heating element.
