What Customization Options Are Available with Our Modular Thermocouples?

Modular thermocouples have become a rather versatile and adaptable option in the field of temperature measuring. These thermocouples are flexible enough for many uses and user needs thanks to their many customizing choices.
The choice of thermocouple kinds is one of the main ways one may customize anything. K-type, J-type, T-type, E-type, and others are among the many thermocouple kinds whose temperature ranges and sensitivities differ. For common industrial uses, for instance, K-type thermocouples are extensively utilized because of their wide temperature range (-40°C to 1100°C; T-type thermocouples are better suited for low-temperature readings with great precision. The particular temperature range and accuracy criteria of their application will help users choose the thermocouple type.
Additionally adjustable are the thermocouple probe's length and diameter. The probe's length decides its depth into the item or process under measurement. A custom-length probe may be very useful in particular situations where the temperature measurement has to be made in a constrained area or at a specified depth. Furthermore influencing the reaction time and longevity of the probe is its diameter. While a bigger probe may be more sturdy but have a slower reaction, a narrower probe may be less durable. The suitable length and width may be selected by users depending on the particular features of their measuring surroundings.
Another crucial changeable feature of the thermocouple is its component. The performance and lifetime of the thermocouple may be much influenced by the materials used for the protective sheath and the thermocouple wires. Each of the metals used in thermocouple wires-platinum, rhodium, nickel, copper-have special qualities and temperature ranges. Depending on the corrosive environment, pressure, and temperature conditions of the application, materials like stainless steel, Inconel, or ceramic may form the protective sheath. For a highly corrosive chemical process, for example, a thermocouple with a ceramic or Inconel sheath could be required to guarantee long-term dependability.
With modular thermocouples, connection and termination choices are also flexible. The particular need of the measuring system will let one choose the sort of connection. Typical forms of connection include weld-on connectors, bayonet connections, and threaded ones. Furthermore customizable are the termination styles-bare wires, screw terminals, or connectorized terminations. These choices provide a safe and dependable connection and enable the thermocouple to be simply connected into the current measuring system.

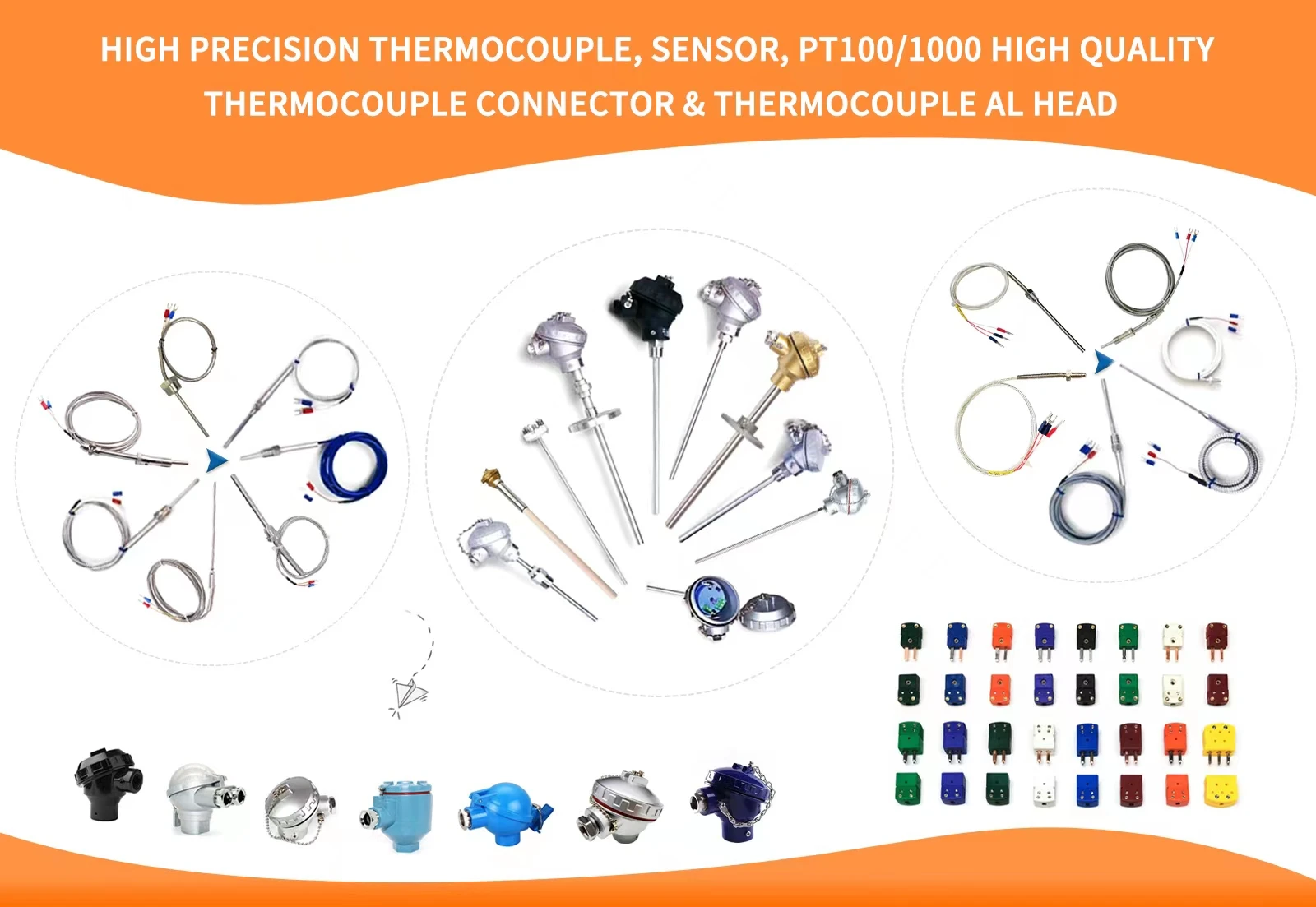

Furthermore enabling customizing of the sensor assembly are the modular design of these thermocouples. Depending on the accessibility and space restrictions of the measuring place, users may choose, for instance, straight heads, angled heads, or small heads. To simplify transmission and processing, some modular thermocouples additionally provide the option of connecting a transmitter straight to the sensor head, therefore transforming the thermocouple signal into a conventional analog or digital signal.
Moreover, one may personalize the packaging and protection of the modular thermocouple. Additional protection like shock absorbers or protective coverings may be needed in certain hostile settings, including high-vibration or high-impact locations, to guarantee the stability and accuracy of the temperature measuring. Customizing the package to fit certain size and form criteria will also help to install and connect the thermocouple into the application more easily.
All things considered, modular thermocouples provide a broad spectrum of customizing choices that let customers fit the thermocouple to their particular need for use. From the thermocouple type chosen, probe length and diameter, material, connection and termination options, to the sensor assembly and packaging, these customizing elements guarantee that the modular thermocouple can supply accurate and dependable temperature measurements in a range of industrial, scientific, and research uses.
