What Is the Maximum Safe Internal Pressure for a 316 Stainless Steel Heating Sheath When Wall Thickness Is Reduced Below 1.2 Millimeters in High-Temperature Liquid Systems?

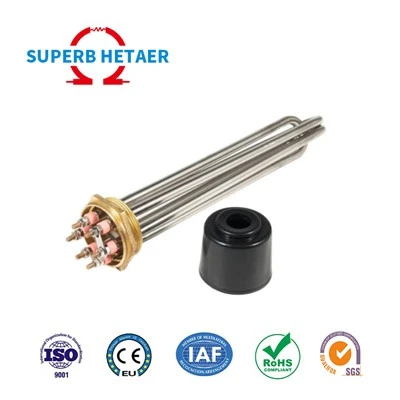

When retrofitting electric immersion heaters into existing pressurised containers, process engineers typically have to utilise a smaller diameter sheath than initially intended because of the limited nozzle diameter or insertion length. Or a thinner wall might be selected for a desire of faster thermal response. However, the pressure containment behaviour changes from ductile to rupture-prone if the wall thickness of a 316 stainless steel sheath is reduced below 1.2 mm, especially at high temperatures where the yield strength of the material diminishes. This paper presents quantitative maximum allowable working pressure limits for thin-walled 316 sheaths, using the Barlow formula with high-temperature derating. This will allow engineers to specify safe wall thicknesses for pressurised liquid systems, without over-conservatism and unnecessary risk.

Fundamentals of Pressure Containment for Thin-Walled 316 Sleeves
For cylindrical pressure vessels, where the wall thickness is less than one-tenth of the inner radius--which is the case for almost all electric heater sheaths--the circumferential or hoop stress is calculated using the Barlow formula: σ = P × D / (2 × t), where σ is the hoop stress, P is the internal pressure, D is the outer diameter, and t is the wall thickness. HOOP STRESS is inversely related to the wall thickness for a given outside diameter and interior pressure. Reducing the wall thickness by half doubles the stress on the sheath material. Therefore, the maximum allowed working pressure varies directly with the wall thickness, for fixed values of other parameters. The yield strength of 316 stainless steel at room temperature is around 290 MPa for annealed material and 520 MPa for cold drawn tubing, which is typically used for heater sheaths. The maximum allowed hoop stress for cold drawn 316 is approximately 170 MPa, using a safety factor of 3 for pressure containment-standard practice for non-code unfired pressure vessels. The safe limit is obtained by solving Barlow's formula for pressure, given an outside diameter and a wall thickness.

Quantitative Limits on Pressure vs. Wall Thickness and Temperature
At increased operating temperature, the permissible pressure is greatly diminished. At 200°C the yield strength of cold-drawn 316 reduces to about 380 MPa, and the acceptable hoop stress is reduced to 125 MPa. Yield strength at 300°C is 320 MPa with allowed stress of 105 MPa. At 400°C, the highest limit for continuous operation of a 316 sheath, the yield strength drops to 280 MPa, permitting only a hoop stress of 90 MPa. The following are the maximum continuous internal pressures for a standard 316 sheath with a 10 mm OD. The maximum pressure is about 40 bar at 200°C and a wall thickness of 1.6 mm. At the same temperature the allowable pressure for a wall thickness of 1.2 mm reduces to 30 bar. Safe pressure then lowers to 25 bar at 1.0 mm wall thickness. With produced sheaths, the minimum wall thickness is 0.8 mm and the safe pressure is merely 20 bar. For systems at 300°C, the same 1.0 mm sheath is limited to about 21 bar and at 400°C just 18 bar. These values are based on tubing that is precisely round, has a homogeneous wall thickness and is free of any other bending or swaging stresses. In practice, a sheath with a manufacturing tolerance of 0.1 mm should have an additional safety margin of 20 %.

Selection matrix of pressure for thin-walled 316 sheaths
Recommended maximum continuous internal pressures for 316 stainless steel heating sheaths at various wall thicknesses and temperatures of operation are given in the table below. Values include a safety factor of 3:1 based on cold drawn material parameters and assume a typical outside diameter of 10 mm. For larger sizes, reduce pressure in proportion to the size ratio.

Sheath Wall Thickness Max Pressure @ 100°C Max Pressure @ 200°C Max Pressure @ 300°C Max Pressure @ 400°C Recommended Application Examples
0.8 mm 28 bar 24 bar 20 bar 16 bar Low-pressure hot water loops, atmospheric tanks with circulation pumps
1.0 mm 35 bar 30 bar 25 bar 20 bar Low-pressure chemical reactors, pressurised hot water systems
1.2 mm 42 bar 36 bar 30 bar 24 bar Medium pressure process heaters, steam preheaters up to 200°C
1.4 mm 49 bar 42 bar 35 bar 28 barHigh Pressure Chemical Injection Heaters
1.6 mm 56 bar 48 bar 40 bar 32 barHigh pressure autoclaves, superheated water systems
In applications where operating pressure exceeds 70% of the values provided, it is recommended that engineers conduct hydrostatic testing on each heater or select seamless tubing with proven homogeneity in wall thickness. As the pressure approaches the predicted limit, the probability of a burst at a localised thin section is substantially higher. Wall Thickness exceeding 50 bar is not relied upon alone, but transitioned to a smaller diameter sheath or an alloy with better strength such as Incoloy 800H.
