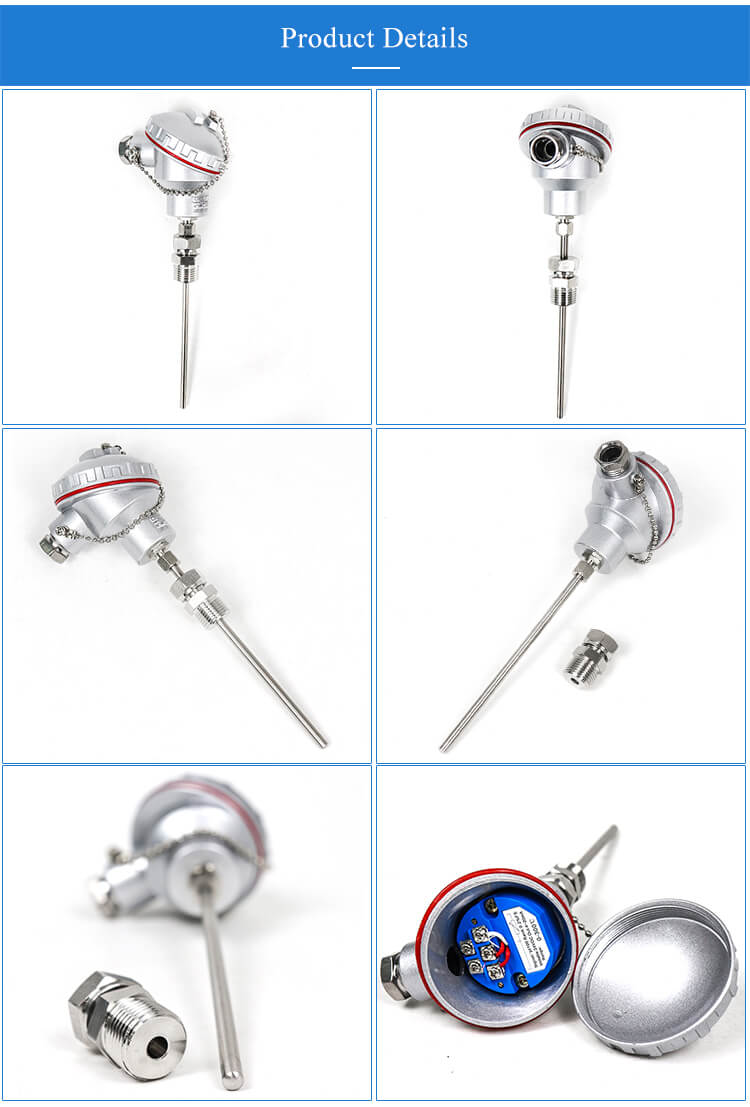

Temperature Sensor Transmitter Probe Type Thermocouple Pt100 Temperature Transducer

HDT-300 armored temperature sensor utilizes the characteristic that the resistance of platinum resistance changes with temperature change, and has a certain functional relationship to measure the temperature of the measured medium. HDT-300 temperature sensor adopts imported platinum resistance with high performance and high reliability. The shell is made of all stainless steel integrated processing, which has the characteristics of small volume and fast thermal response. The wire uses special shielded wire and the temperature range is wide. The product is easy to install. It has extremely high vibration and shock resistance.

HDT-300 armored temperature sensors are commonly used in petroleum machinery, chemical machinery, pumps and compressors, power, boilers, natural gas and other automated temperature measurement and control systems, directly measuring liquids and gases in the range of -50 ℃ ~ 250 ℃ The temperature of the medium and solid surface.

Product Features:

High strength, anti-vibration, anti-high pressure

Fast response

Explosion-proof grade: intrinsically safe ExiaⅡCT6

Strong anti-interference and good long-term stability

Easy to install and use

Index number: Pt100, Pt1000 optional

Applicable Scope:

Pipe and ventilation systems

Hydraulic and pneumatic systems

Cooling and heating systems

Water supply and water heating systems

Air-conditioning systems

Automation system temperature mensuration and control

 Parameters:
