industry bayonet Spring-type thermocouple k e j type temperature probe sensor Advantages 1:Screw length adjustement,M12 thread with spring 2:Precision metal anti-interference Extension wire 3:High Precision Temperature control probe ,Adjustable probe size 4:Wide range of temperature...
Description
|
thread |
Stander size M12*1.5 |
|
Customized thread size |
M8*1/M8*1.25/M10*1/M10*1.25/M12*1M/M12*1.25 |
|
Tube diameter |
5mm(Stander) 3mm/4mm or customized |
|
Tube length |
30mm or customized |
|
Wire diameter |
2*0.4mm |
|
K type |
0-800 ℃ |
|
E type |
0-400 ℃ |
|
J type |
-45-300℃ |
|
Pt100 |
-45+300 ℃ |

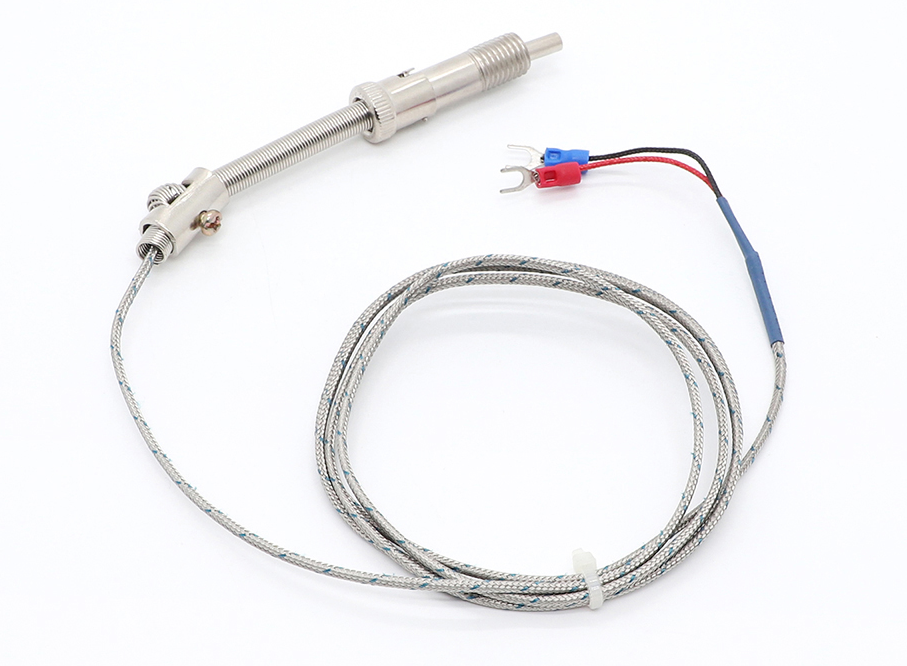

industry bayonet Spring-type thermocouple k e j type temperature probe sensor Advantages
1:Screw length adjustement,M12 thread with spring
2:Precision metal anti-interference Extension wire
3:High Precision Temperature control probe ,Adjustable probe size
4:Wide range of temperature measurement,Quick response
5:Stainless steel rust protection tube
