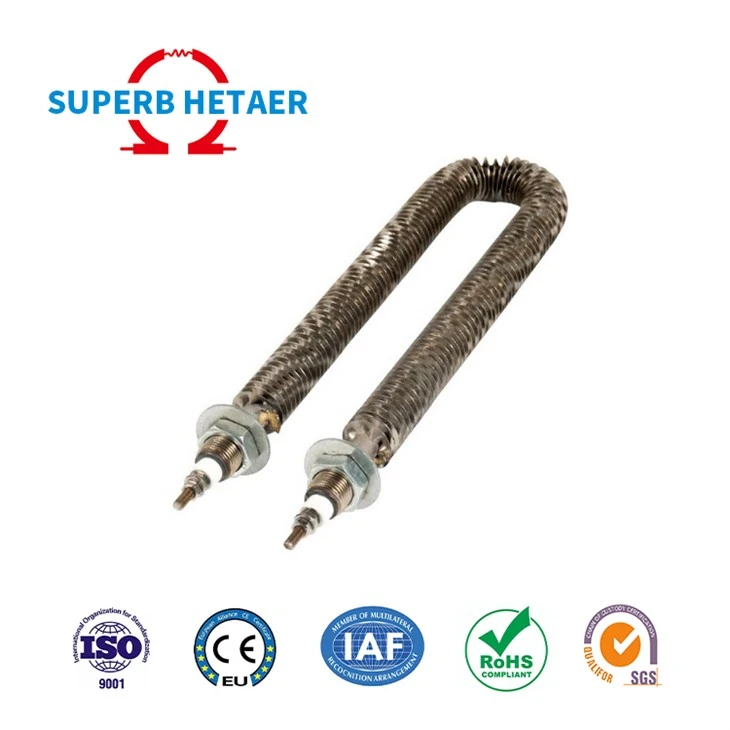

220V 2kw Fin Tubular Heater Finned Air Heater Fin Heating Element
1. We produce heating elements of various materials(Stainless steel/Copper/Ti,etc) and applications(industry/electric appliance/immersion/air,etc), according to customers' requirements. 2. there is huge variety of selection of termination styles available. 3.We only use high purity magnesium...
Description
Electric Finned Tubular Air Heater Elements are constructed like basic tubular elements with the addition of continuous spiral fins, 4-5 per inch permanently furnace brazed to the sheath.Fins greatly increase surface area and permit faster hear transfer to air, resulting in lower surface element temperatures.
finned tubular heaters provide rapid heat transfer for natural convection or forced air
space heating in industrial process air heating systems.
Finned tubular heaters start out as a standard tubular heater with the fins being attached
on a custom built finning machine.
Features:
Mild steel sheath models are suitable for operating temperatures to 500C
Premium grade magnesium oxide insulation imbeds the resistance wire coil for optimum heat transfer
High temperature nickel chromum resistance wire
Full brazed wound fin
Standard and custom options available
|
Standard size and material |
|
|
Specifications |
|
|
Standard diameter: 11mm |
Standard fin diameter: 23mm |
|
Material: 304SS, 316SS |
Terminations: All Tubular Heater |
|
Min. Sheath Length: 500mm |
Max. Volts: 480 Vac |
|
Max. Sheath Length: 256" |
Max. Amperage: 40 Amp |
Range of application:
1. Machinery industry
2. car industry
3. Textiles industry
4. food industry
5. Home Appliances
