Electric Mica 12 mm Heater Band
electric mica 12 mm heater band for film blowing machine was made of stainless steel sheet, mica sheet, resistance wire/ strip , stainless steel sheet standard thickness is 0.3mm to 0.5mm, and in the middle , resistance wire/ strip wrap around the mica sheet, and add 1-2 pieces mica sheet again...
Description
electric mica 12 mm heater band for film blowing machine was made of stainless steel sheet, mica sheet, resistance wire/ strip , stainless steel sheet standard thickness is 0.3mm to 0.5mm, and in the middle , resistance wire/ strip wrap around the mica sheet, and add 1-2 pieces mica sheet again each side for insulation. They can be made to be many different kinds of shape as your requirement.Mica band heater can be made to be 110V 220V 380V also can be made to be DC voltage.
2.Good insulation property,insulation resistance is bigger than 100MΩ.
3.Light weight, thin thickness,small volume,big power.
4.It can be easily designed any shapes according to demand, low cost.
2.Rubber Moulding /Plastic Process Machinery
3.Tooling & Die Heads
4.Packaging Machinery
5.Shoe Manufacturing Machinery
6.Test Equipment/Laboratory Equipment
7.Food Process Machinery
8.Drums containing solids or fluids
9.Vacuum Pumps and more...
|
Vottage
|
380V,240V, 220V,200V,110V and other can be customized.
|
|
Wattage
|
80W,100W,200W,250W and other can be customized.
|
|

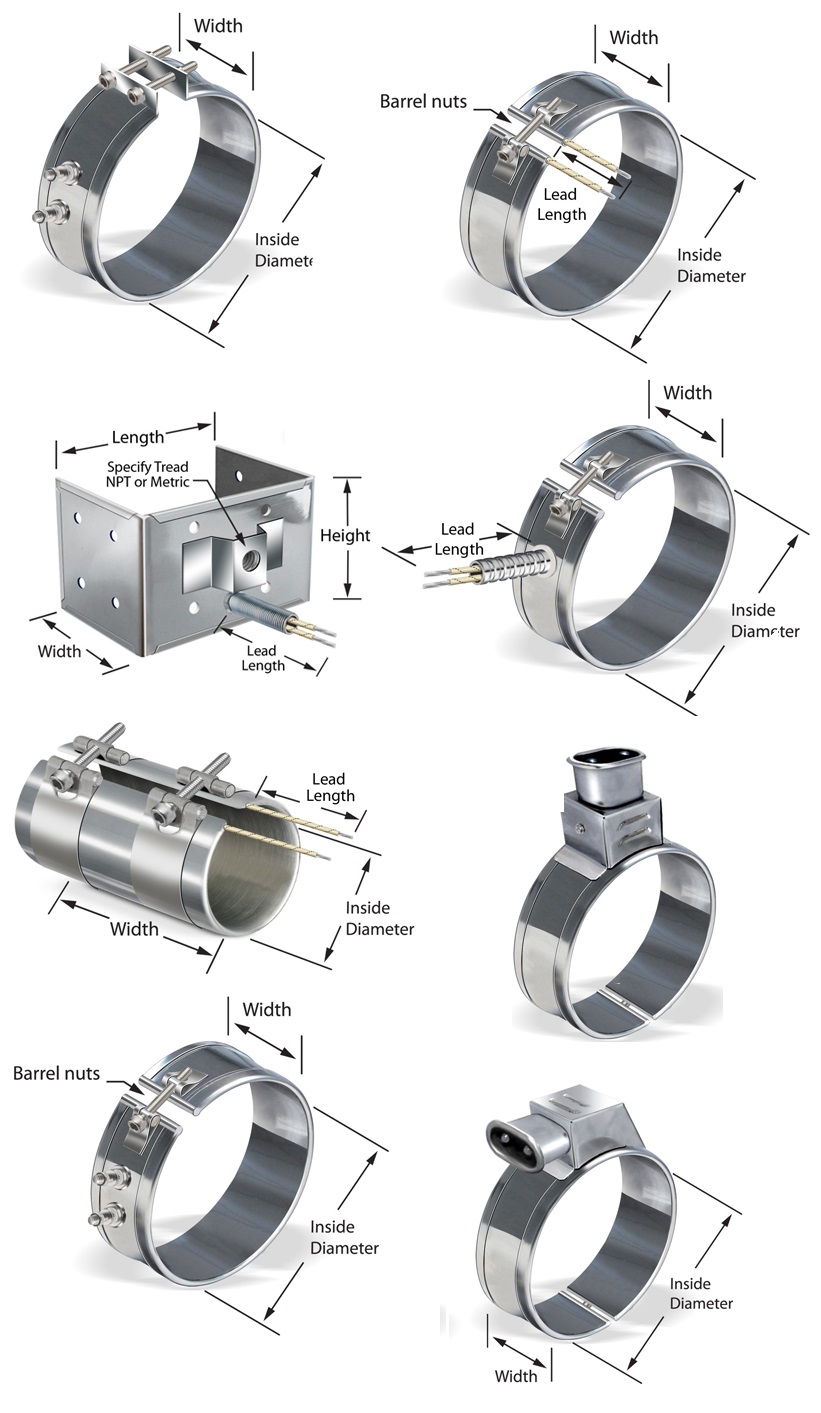

Heater Inside Diameter
|
Customized
|
|
Heater Width
|
20mm, 30mm, 60mm, 110mm and other can be customized.
|
|
Termination Stype
|
standard type or plug terminal, ceramic block terminal and lead wire terminal.
|
|
Other special requirements if you have.
|
|
