Plastic Extruder Machine Mica Heater Band
Plastic Extruder Machine Mica Heater Band is made of stainless steel sheet, mica sheet, resistance wire/ strip , stainless steel sheet standard thickness is 0.3mm to 0.5mm, and in the middle , resistance wire/ strip wrap around the mica sheet, and add 1-2 pieces mica sheet again each side for...
Description
Plastic Extruder Machine Mica Heater Band is made of stainless steel sheet, mica sheet, resistance wire/ strip , stainless steel sheet standard thickness is 0.3mm to 0.5mm, and in the middle , resistance wire/ strip wrap around the mica sheet, and add 1-2 pieces mica sheet again each side for insulation. They can be made to be many different kinds of shape as your requirement. It is the ideal solution for high watt densities and high operating temperature applications, especially for the plastics industry. Band heaters can be found in several types of dimensions, wattage, voltages and material. It is an inexpensive form of heating solution to external indirect heating.
Specification
|
Gap Between the Clamping Edge |
5 - 10mm |
|
Power Tolerance |
+5% to -10% |
|
Resistance |
-5% to +10% |
|
Insulation Resistance (Cold) |
≥20 MΩ |
|
Sheath Material |
Stainless Steel cover ,High Temperature Plate |
|
Connection Method |
Metal box |
|
Nominal Wall Thickness |
Premium Heat : ½" |
|
Heating Elements (coil) |
NiCr 80:20 |
|
Lead Wire Terminals |

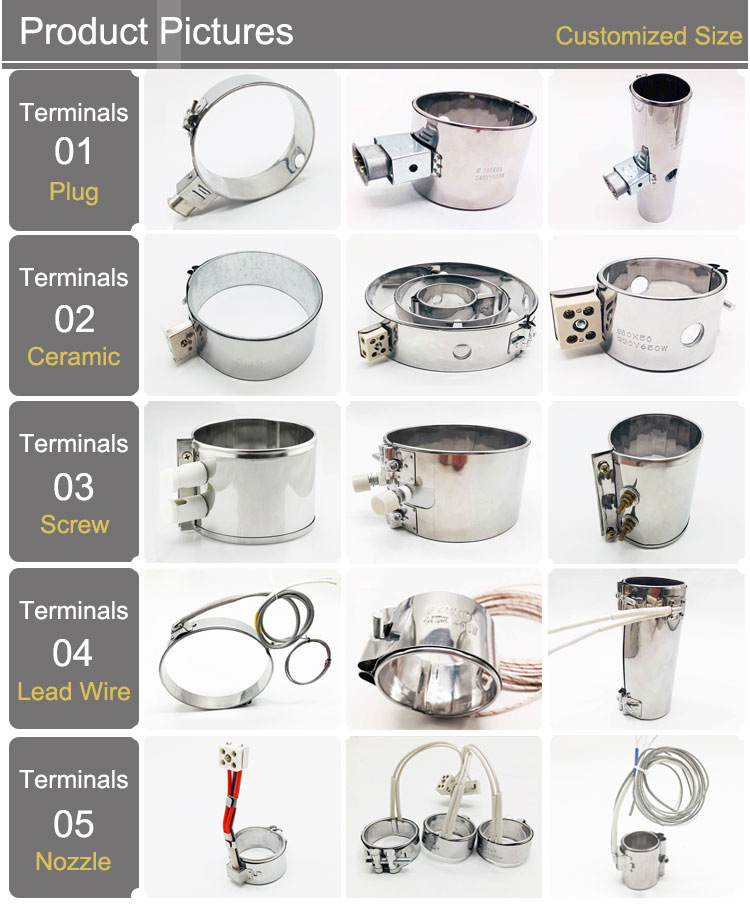

1.Stainless steel braid: stright lead exit/ low profile terminal cover/ used mostly with nozzle heaters/ 180° from gap/ heat shrink sleeving |
