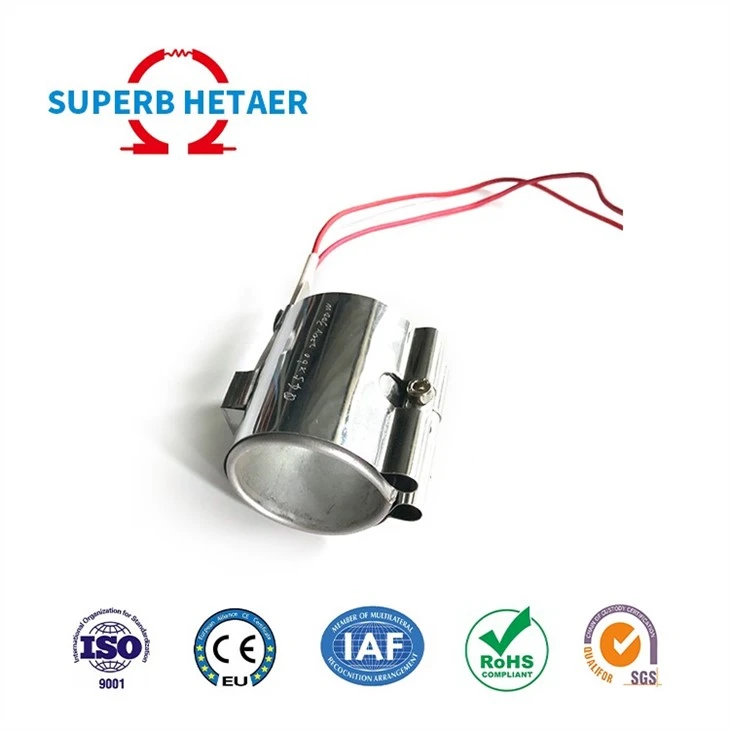

Extrusion Die Mica Band Heater

Extrusion Die Mica Band Heater

Mica Band heater is made of mica insulation, nickel chrome heating wire and Stainless steel sheath. standard thickness of Stainless steel sheath is 0.3mm to 0.5mm, and in the middle , resistance wire/ strip wrap around the mica sheet, and add 1-2 pieces mica sheet again each side for insulation. Then roll it to the required band (barrel) shape.

Features:

1. Heat-resistant, endure high temperature as 600℃.

2. Mica insulation prevents heat loss, High Value of Heating Transfer rater

3. High temperature nickel-chromium element wire

4. Max. watt density : 3 W/cm² (Wattage tolerance: +5% -10%)

4. Mini diameter: 25mm

5. Mini height: 25mm

6. Good insulation property,insulation resistance is bigger than 100MΩ.

7. Light weight, thin thickness,small volume,big power.

8. It can be easily designed any shapes according to demand, low cost.

Technical Information:

Types of terMinal

All custom made terMinals and plugs are availble for the Mica Band heater made by Jaye industry: European plugs, terMinal boxes, wire leads, post terMinalsand tapped thermocouple brackets are available to service Asian, European, American Market , etc.
