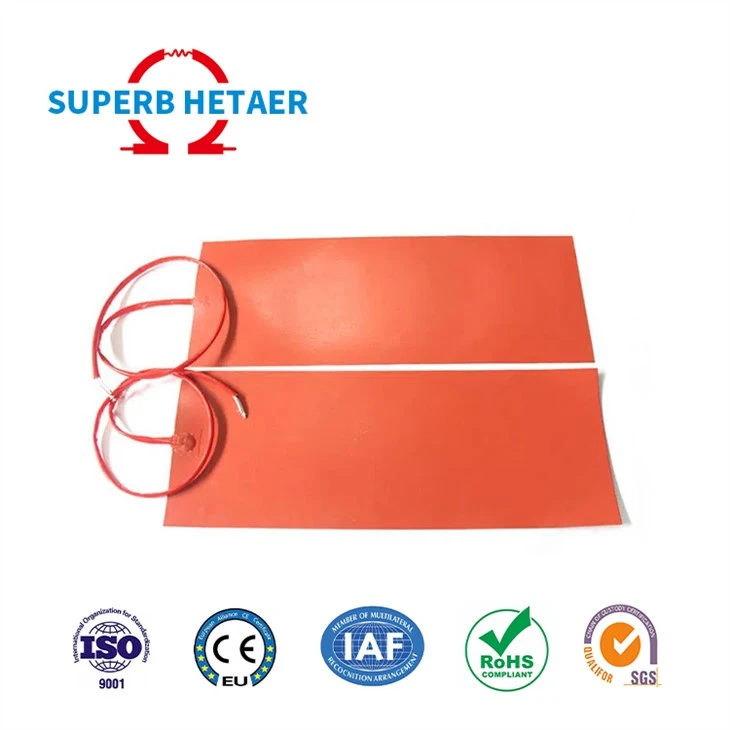

Industrial Flexible Silicone Rubber Heating Pad
Industrial Flexible Silicone Rubber Heating Pad is a kind of thin film which heaters upon electrified, in a standard thickness of 1.5mm, Adopting nickel chrome wires or 0.05 mm~0.10mm thick nickel chrome foils etched to some certain shapes, the heating component is wrapped with heat conducting...
Description
Industrial Flexible Silicone Rubber Heating Pad is a kind of thin film which heaters upon electrified, in a standard thickness of 1.5mm, Adopting nickel chrome wires or 0.05 mm~0.10mm thick nickel chrome foils etched to some certain shapes, the heating component is wrapped with heat conducting and insulating materials on both sides, and completed in high temperature die forming and aging heat treatment. Due to its high reliability, the product is highly competitive when comparing with other electric heating film products which normally have paste materials such as graphite paste or resistor paste, etc. coated on insulation materials. As a kind of soft red film which can be applied closely on different curved surfaces, the silastic heater can be fabricated in varies shapes and powers.
Specifications:
2.The use temperature: 200 ° C
3. Insulation resistance: ≥5MΩ
4.Pressure strength: ≥ AC1500V/5S
5.Power deviation: ± 8%
6.Voltage range: 1.5-380V
7.Unit power: 1.5W / CM2.
Main Features:
1. Maximum temperature resistantof insulation : 200 ℃
2. Best continuous working temperature as 150 degree, max temperature as 230 degree momentarily.
3. Power deviation : 8% insulation resistance : >= 5MΩ
4. Compressive strength : 1500V/5s
5. Standard dimension : width: 20mm-1000mm ; Length : 25mm-1000mm; lead wire length : 200mm.
6. Fast heat diffusion , uniform heat transfer , directly heat objects on ; high thermal efficiency , high strength , long service life ,work safe , uneasy for ageing.
Application:
1. Industrial Flexible Silicone Rubber Heating Pad can be used in damp , no explosive gas atmosphere, industrial equipment pipelines, heat preservation for can and barrel .
