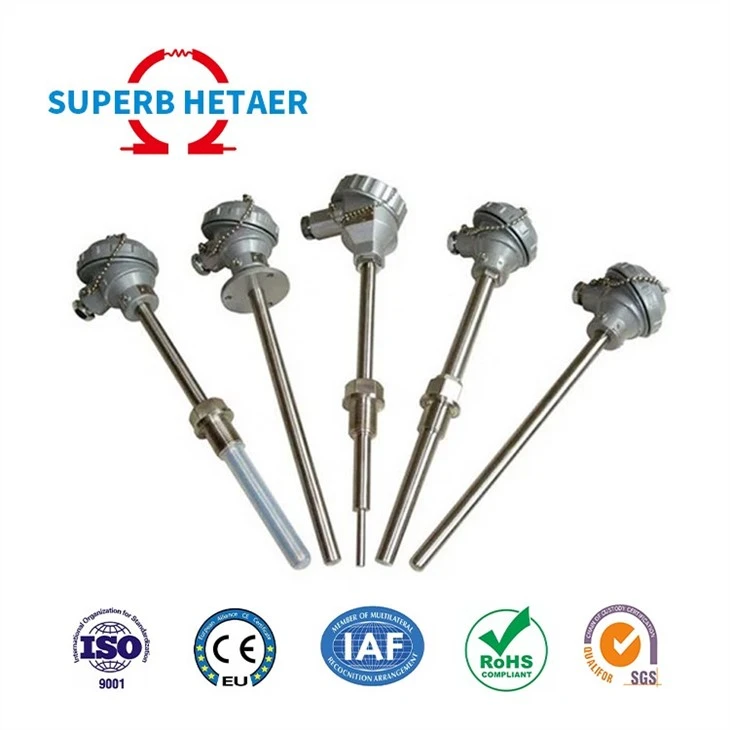

Pt100 Temperature Sensor Probe Wear-resistant Thermocouple
PT100 Temperature Sensor Features of PT100 sensor, RTD sensor With short thermal response time, reducing dynamic error; Wide measuring range(-200~+450degree celsius); Good mechanical performance, pressure-resistant, shock-resistant, impact-resistant Specifications of PT100 sensor, RTD sensor
Description
PT100 Temperature Sensor
Features of PT100 sensor, RTD sensor
With short thermal response time, reducing dynamic error;
Wide measuring range(-200~+450degree celsius);
Good mechanical performance, pressure-resistant, shock-resistant, impact-resistant
Specifications of PT100 sensor, RTD sensor
|
Tag: PT100 sensor, RTD sensor, PT100 |
|
|
Ref No. |
WZ |
|
Thermal element materials |
Pt100 |
|
Accuracy Class |
A B |
|
Ways of Mounting & Fixing |
1: Without fixing device 2: Fixed compression thread 3: Movable compression thread 4: Fixed compression flange 5: Movable compression flange 6: Shock-resistant & Anti-leakage compression thread |
|
Types of connections box |
0: Connection seat type 2: Anti-spray (Protection class: IP65) 3: Water-proof (Protection class: IP55) 6: Round plug type 7: Flag plug type 8: Small Connection type 9: Compensation wire type |
|
Types of sensor end |
1. insulation type |
|
Diameter of thermowell |
0: Ø16 1: Ø12 3: Ø3 4: Ø4 5: Ø5 6: Ø6 8: Ø8 |
|
Measuring range |
-200~+450 degree Celsius |
|
Shipping |
By air, sea, express |
|
Sample time |
2~7 days |
|
Manufacture time |
7~30 days depending on order quantity |
|
Special character of thermal resistance: 1. short thermal response time; 2. high quality film resistor with stable performance.
Work principle of thermal resistance: When temperature of object changes, the resistance will change accordingly, to measure temperature. When the resistance value changes, the working meter will display relevant temperature. |
|
