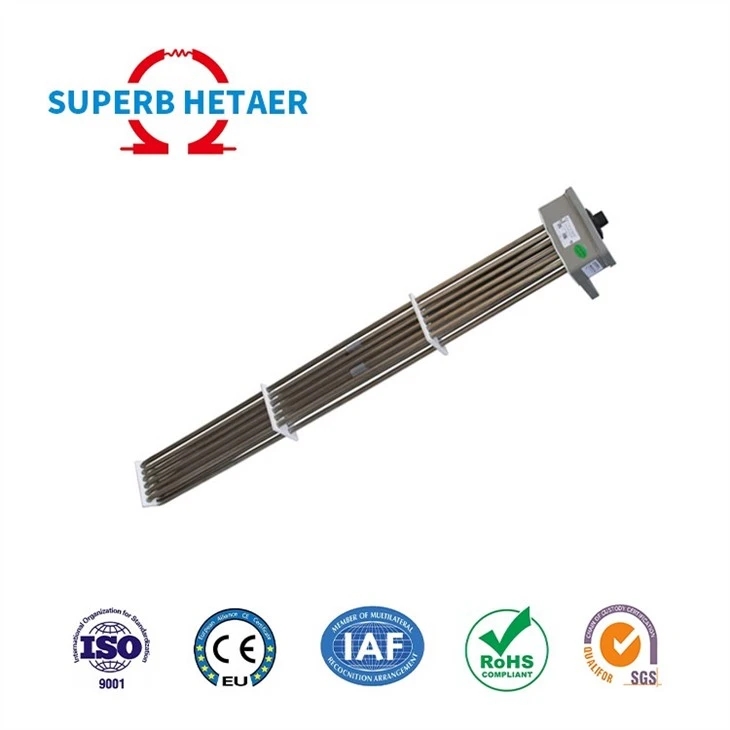

SmartOne PTC Max Electric Immersion Heaters

SmartOne PTC Max Electric Immersion Heaters
SmartOne PTC Max Electric Immersion Heaters
SmartOne PTC Max Electric Immersion Heaters
SmartOne PTC Max Electric Immersion Heaters
SmartOne PTC Max Electric Immersion Heaters

SmartOne PTC Max Electric Immersion Heaters

SmartOne PTC Max Electric Immersion Heaters: · LONG ELEMENT LIFE: • Patented PTC heater element lasts longer than conventional heaters. • Will not burn out if run in air. • Will not burn out due to scale or sludge buildup. · · SAFE DESIGN: • Heater self limits its maximum operating temperature...

Send Inquiry

Description

SmartOne PTC Max Electric Immersion Heaters:

WATTS	VOLTS	Hot Zone MM/IN.	Overall MM/IN.	304SS 316SS	Titanium	Ship Wt. Lbs./(Kg)
3000	240 480	180(7)	280(11)	S3SP3211 S3SP3241	S3TP3211 S3TP3241	21(9.5)
6000	240 480	330(13)	430(17)	S3SP6217 S3SP6417	S3TP6217 S3TP6417	30(13.6)
9000	240 480	460(18)	585(23)	S3SP9223 S3SP9423	S3TP9223 S3TP9423	33(15)
12000	240 480	610(24)	735(29)	S3SP12229 S3SP12429	S3TP12229 S3TP12429	39(17.7)
15000	380 480	760(30)	890(35)	S3SP15435	S3TP15435	45(20.5)
18000	380 480	890(35)	1040(41)	S3SP18441	S3TP18441	51(23)
24000	380 480	1040(41)	1195(47)	S3SP24447	S3TP24447	65(29)
27000	380 480	1195(47)	1350(53)	S3SP27453	S3TP27453	70(32)
2400	240 480	180(7)	280(11)	S3SP2.4211 S3SP2.4411	S3TP2.4211 S3TP2.4411	21(9.5)
4800	240 480	330(13)	430(17)	S3SP4.8217 S3SP4.8417	S3TP4.8217 S3TP4.8417	30(13.6)
7200	380 480	460(18)	585(23)	S3SP7.2423	S3TP7.2423	33(15)
9600	380 480	610(24)	735(29)	S3SP9.6429	S3TP9.6429	39(17.7)
12000	380 480	760(30)	890(35)	S3SP12435	S3TP12435	45(20.5)
14400	380 480	890(35)	1040(41)	S3SP14.4441	S3TP14.4441	51(23)
16800	380 480	1040(41)	1195(47)	S3SP16.8447	S3SP16.8447	70(32)

· LONG ELEMENT LIFE:
• Patented PTC heater element lasts longer than conventional heaters.
• Will not burn out if run in air.
• Will not burn out due to scale or sludge buildup.

· SAFE DESIGN:
• Heater self limits its maximum operating temperature to 482F (250 degree C). This is lower than the ignition point of most plastics.
• Will not melt tanks when a 1/2" (12mm) minimum distance is maintained.
• Overtemperature protection devices are not required.
• Safety is built-in, not added on.
• Metal-grounded construction (earth ground).
• Non-floating construction.

· SIZES: 3,000 watts (3kW) to 27,000 watts (27kW).

· VOLTAGES::
Three voltage ranges available: 120 volt, 200-240 volt, and 380-480 volt.
Heater is available in single or three phase power.

· CORROSION RESISTANT HEADS: Vapor resistant, flame retardant polypropylene terminal enclosures each with 3-foot (.9m) flexible PVC liquid tight conduits.

· OUTSTANDING PERFORMANCE:
• Watt densities of 26 watts per square inch (4 watts/cm2) ensure long service life.
• Auto-stabilizing solid state element prevents hot spots and ensures uniform heating.
• Heater derates itself in highly viscous and high temperature solutions. Consult factory for sizing assistance.

· CHEMICALLY RESISTANT:
For use in most aqueous alkaline, electroplating and rinse solutions. Check our Solution Guide or with your chemical supplier for recommended sheath material. Available in:
• 304 stainless steel
• 316 stainless steel
• Titanium

CERTIFICATIONS: ISO9001 and CE

Tube Diameter: 50mm(2-inch) standard

We have custom built heaters and can make any Watts,voltages with the size according to customers’ requirement

OPTIONS :(consult Our FACTORY for any installation)
