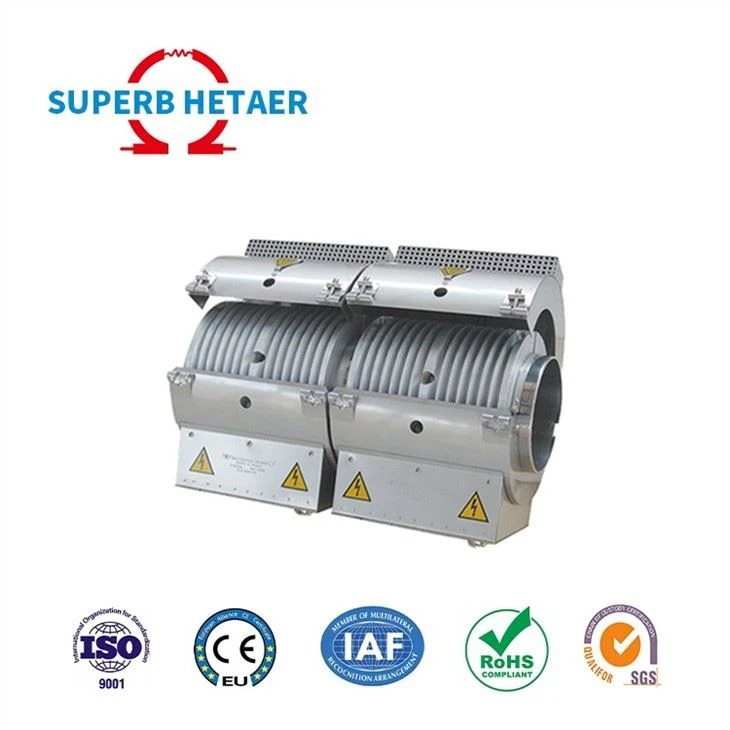

Cast Aluminium Heater For Plastic Processing
With regards to Cast Aluminium Band Heater In comparison to other heaters, Cast Aluminium Heater for Plastic Processing is more adaptable in shaping and energy-saving. It can be made into all shapes including square, circular, triangle, circle plank, right angle, cone, tubular, etc. Cast...
Description
With regards to Cast Aluminium Band Heater
In comparison to other heaters, Cast Aluminium Heater for Plastic Processing is more adaptable in shaping and energy-saving. It can be made into all shapes including square, circular, triangle, circle plank, right angle, cone, tubular, etc. Cast aluminum heating devices have been widely used in a variety of industry fields, including plastic machinery, moulds, wire & cable, piping, and chemistry.
To stabilize the temperature and effectively minimize heating, it may also be used in conjunction with a water cooling device and an air cooling cover that go between an aluminum slice and a radiator, depending on the situation.
UL certification is included on our aluminum heater. export to the USA
Cast Aluminium Heater for Plastic Processing Usual Common Specification
| |||
Model | Diameter (mm) | Voltage (v) | Power(w) |
conical twin screw 51/105 | 200*110 | 220/380 | 2000 |
200*130 | 220/380 | 1600 | |
185*200 | 220/380 | 3000 | |
140*150 | 220/380 | 1500 | |
conical twin screw 55/110 | 240*250 | 220/380 | 5000 |
200*120 | 220/380 | 1600 | |
200*190 | 220/380 | 3000 | |
175*200 | 220/380 | 3000 | |
conical twin screw 65/132 | 265*290 | 220/380 | 7000 |
230*160 | 220/380 | 3000 | |
230*250 | 220/380 | 5000 | |
190*240 | 220/380 | 4000 | |
conical twin screw 80/156 (according to the barrel) | 320*300 | 220/380 | 9000 |
290*300 | 220/380 | 7000 | |
260*300 | 220/380 | 6000 | |
240*160 | 220/380 | 3000 | |
240*140 | 220/380 | 2000 | |
conical twin screw 92/188 (according to the barrel) | 390*240 | 220/380 | 12000 |
365*320 | 220/380 | 14000 | |
340*320 | 220/380 | 8000 | |
315*480 | 220/380 | 12000 | |
285*480 | 220/380 | 10000 | |
