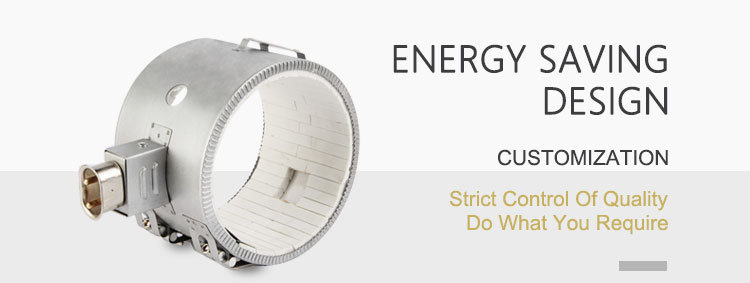

220v 3500w 8x6 Inch Ceramic Heater Band
220v 3500w 8x6 inch ceramic heater band are medium-to-high temperature heaters that have 500℃ as a maximum working temperature. They provide long life and use less wattage (because of insulation) in plastics extrusion and injection molding applications. Ceramic band heaters are available with...
Description
220v 3500w 8x6 inch ceramic heater band are medium-to-high temperature heaters that have 500℃ as a maximum working temperature. They provide long life and use less wattage (because of insulation) in plastics extrusion and injection molding applications.
Ceramic band heaters are available with different terminal styles, are fully flexible, and can accommodate holes and cut-outs. Songtai Factory engineering is available to assist with the design and development of special heaters for particular requirements.
Specification
|
Gap Between the Clamping Edge |
5 - 10mm |
|
Power Tolerance |
+5% to -10% |
|
Resistance |
-5% to +10% |
|
Insulation Resistance (Cold) |
≥20 MΩ |
|
Sheath Material |
Stainless Steel cover ,High Temperature Plate |
|
Connection Method |
Metal box |
|
Nominal Wall Thickness |
Premium Heat : ½" |
|
Heating Elements (coil) |
NiCr 80:20 |
|
Lead Wire Terminals |
1.Stainless steel braid: stright lead exit/ low profile terminal cover/ used mostly with nozzle heaters/ 180° from gap/ heat shrink sleeving |
Features
Easy to install
Long service life
Good Temperature Uniformity
Highly flexible, durable
Quick to respond to controls Two-Piece Bands are available per request

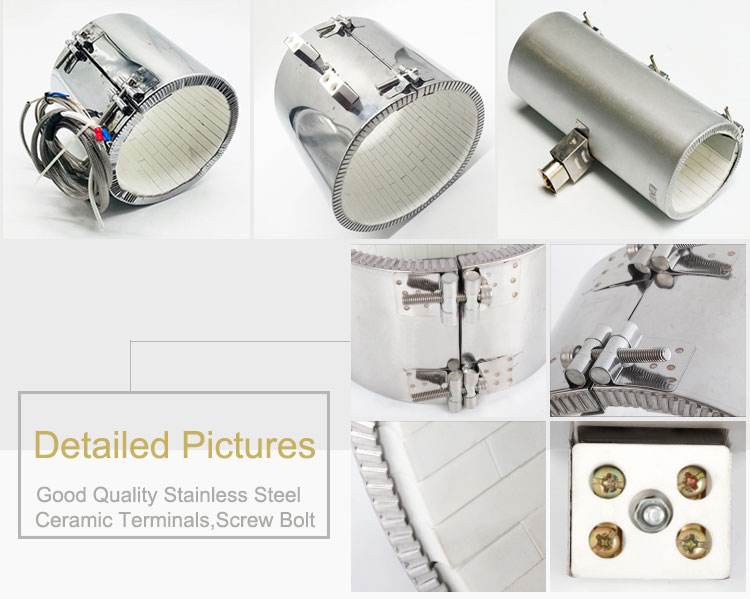

Product Pictures
1.Q:Are you a factory or trading company?
A, Yes we are the factory and have 10 production lines for us.
2.Q:What's the shipping method?
A: International express and sea transportation,Depend on customers.
3.Q:Can I use my own forwarder to transport the products for me?
A:Yes, if you have your own forwarder , you can let your
forwarder ship the products for you.
4.Q:What's the Payment method?
A:T/T, 30% deposit before production, the balance before delivery.
We sugguest you transfer the full price at one time. Cause there is bank process fee, it would be a lot of money if you make twice transfer.
5.Q: What is our payment term?
A:We can accept the payment by T/T, Ali Online, Paypal,Credit card and W/U
6.Q:Can we print our own brand?
A: Yes, Of course.Will be our pleasure to be one your good OEM manufacturer in China to meet your OEM requirements.
7.Q:How to Place an order?
A:Please kinldy send us your order by email,we will confirm the PI with you .we wish to know the below:your details address,phone/fax number,destination,transportation way ;
Product informaiton:item number,size,quantity,logo,etc
