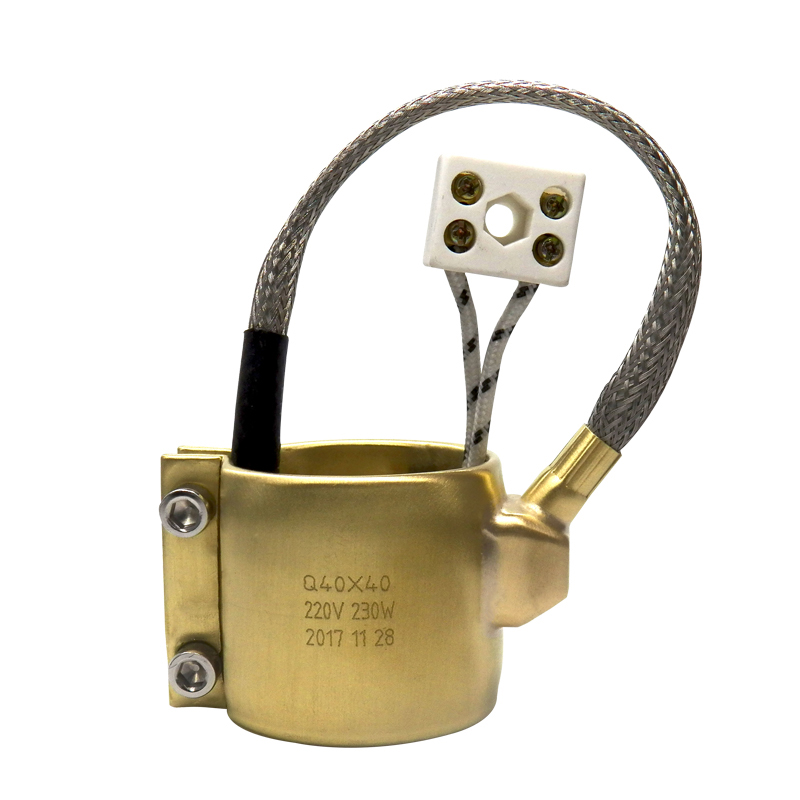

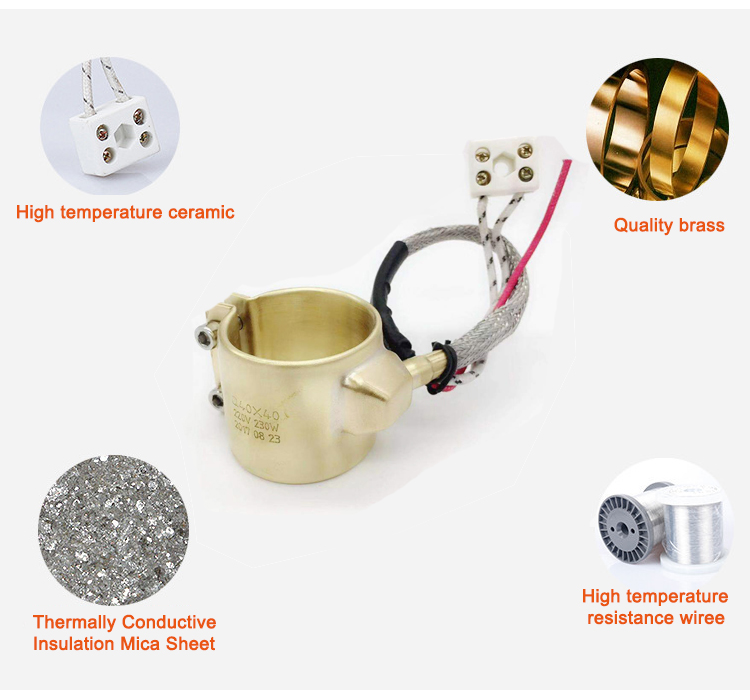

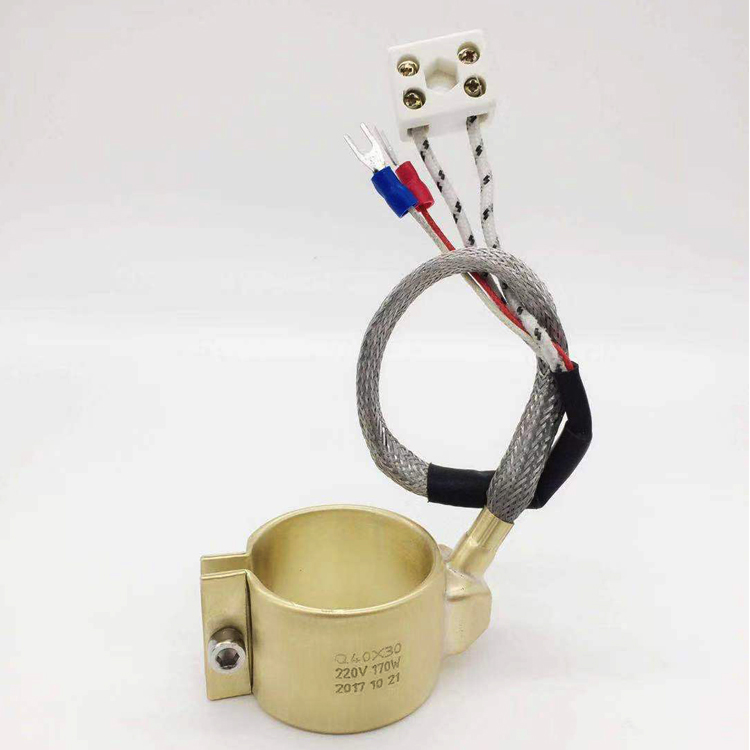

Plastic Extruder Copper Nozzle Brass Band Heater
plastic Extruder copper nozzle brass band heater is designed for injection moulding and plastic extruders as well as other similar types of machinery. They are made from brass and have a smooth contact area without voids which gives them excellent thermal exchange. The flexible leads which are...
Description
plastic Extruder copper nozzle brass band heater is designed for injection moulding and plastic extruders as well as other similar
types of machinery. They are made from brass and have a smooth contact area without voids which
gives them excellent thermal exchange. The flexible leads which are resistant to being pulled off leave
the heater at a 45º angle.
| Heater Body material | Brass |
| Heater Maximum Watt Density | 4.5W/cm2 |
| Band diameters | 30mm - 60mm |
| Band widths | 20mm - 60mm |
| Connection cable | Fibreglass insulation with stainless steel braiding over the nickel positive, negative and earth leads |
| Cable length | 1 metre |
| Supply voltage | Variable, but loadings shown below are based on 220V supply |
| Dielectric strength | 2000V |
plastic Extruder copper nozzle brass band heater advantages:
1. Available in chrome nickel steel with power saving options.
2. Special high grade steatite insulators for superior thermal conductivity.
3. Robust terminal junction with specially designed protection cap.
4. Efficient heat transfer even on irregular surfaces in comparison to mica band.
5. Conserves energy with improved heating efficiency up to 55 Watts per square inch.
6. Reduces down time for replacements.. Easy installation and removal.
7. Engineered for longer life with superior quality nichrome wire for uniform temperature & maximum
amperage carrying capacity
Applications:
Widely used in Injection Moulding.Film extruders.Blow Moulding..All Plastic & Rubber Processing
Machinery..Laboratory Equipment
