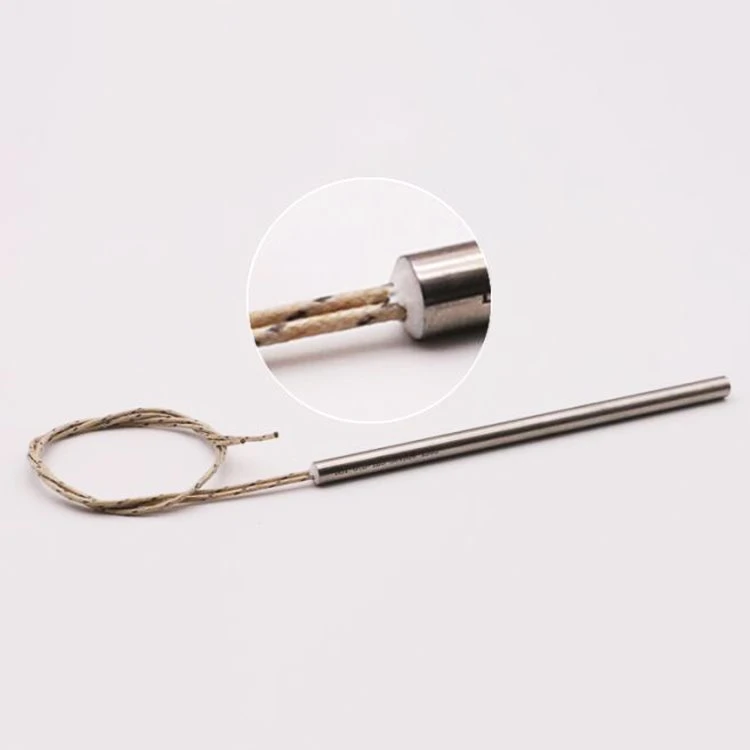

Firerod Cartridge Heaters

Firerod Cartridge heaters are most frequently used for heating metal parts by insertion into drilled holes. For easy installation, the heaters are made slightly undersize relative to their nominal diameter.

Typical Applications:

• Semiconductor chamber heating
• Semiconductor wire and die bonding
• Freeze protection and deicing of equipment in cold
climates or applications
• Humidity control
• Patient comfort heating used in medical devices
• Mold die and platen heating
• Seal bars used in packaging equipment
• Test sample heating in gas chromatography equipment

Technical Data:

Tube diameter: customized,Min dia.2.8mm

Tube Material: SS304; SS316, SS321, NICOLOY800 etc.

Insulation Material:High-purity Mgo

Resistance wire element:Ni-Cr or FeCr

Wattage density: high/middle/low(5-25w/cm2)

Lead Connection Option: Crimped or Swaged leads

Lead wire type: 10" Standard(Teflon/silicone high temperature frberglass)
