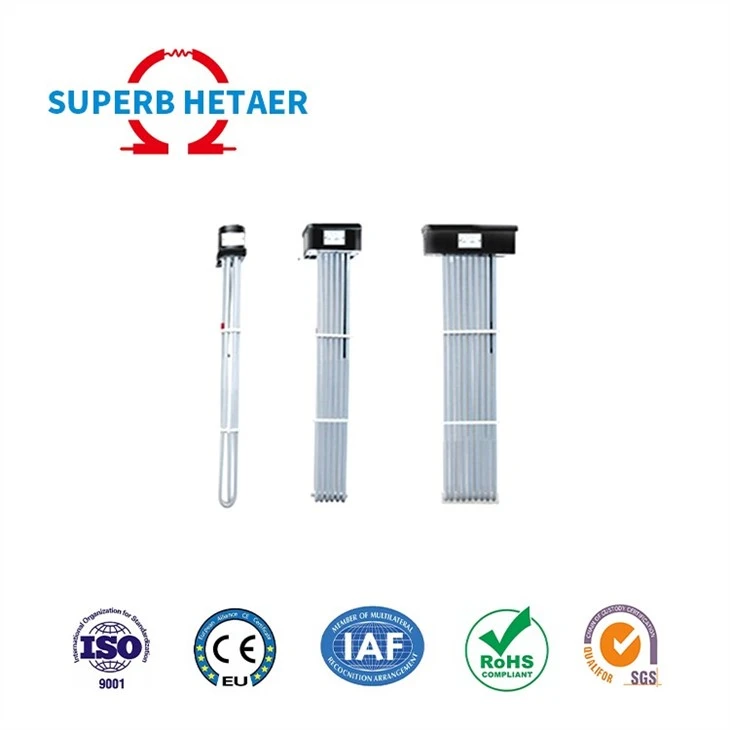

PTFE Immersion Electric Heaters For Chemicals & Plating

1. Fluoropolymer Sleeve Heating Element Quality resistance element is sleeved in braided material for even coil separation. The entire element is given an outer sleeving of pretested and pre-extruded fluoropolymer tubing. THIS IS NOT A COATED PRODUCT.

2. Over-temperature Thermocouple The over-temperature cutoff device protects the integrity of the fluoropolymer heater. If an opera- tor should leave the heater on while draining or aspirating a tank, when used in conjunction with a temperature control device, it will automatically shut off the heater when it is exposed to air.

PRODUCT DESCRIPTION

Designed for the most demanding chemical applications and to provide years of trouble-free performance.

FEATURES

Constructed with our exclusive elements for extended service life.

High efficiency in a compact design, and an excellent alternative for replacing strip heaters on quartz tanks.

TFP for bottom heater applications and  inside tank wall requirements.

All wetted parts are fluoropolymer and compatible with virtually any chemistry for unlimited process options. (Not to be used with flammable solutions.)

Low watt density design promotes process temperature uniformity.

SPECIFICATIONS

From 2,000  - 18,000 watts

120 to 600 volts, single or three phase

Up to 10 watts per square inch (1.5w/cm2)

Up to 130º Celsius (266° F). For higher temperatures, see Options section.

OPTIONS AVAILABLE (CONSULT FACTORY)

.030 inch (0.76mm) thick sheath available for applications above 130°C (266° F) or for use with certain chemistries such as nitride etch or HF

PID temperature control module

Custom configurations and lengths

Element gas purge flow regulator panel

Bolt down feature

Product Application

Application:professional selection,stable performance and more accurate,suitable for chemical industry aquaculture ,food ,packing ,medical electronics and other industry with temperature control equipment

Plastic processing machinery

Water and oil heating appliances

Packing machinery

Vending machines

Dies and Tools

Heating chemical solutions

Ovens and Dryers

Kitchen equipment
