Uneven heating from a single heating element? This troubleshooting method is more efficient.

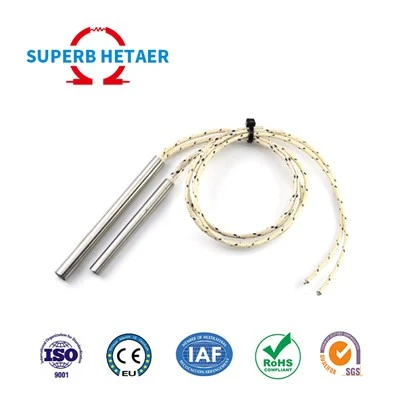

Single-ended heating elements are widely used in mold heating, small equipment insulation, and laboratory instruments. Uneven heating can not only affect heating efficiency and reduce work productivity, but also shorten the lifespan of the heating element and even pose safety hazards. This article will help you thoroughly solve the problem of uneven heating in single-ended heating elements from three dimensions: "cause investigation → targeted solutions → daily prevention."

I. First, understand the core causes of uneven heating in single-ended heating elements

Uneven heating in single-ended heating elements is essentially due to "abnormal power distribution" or "impeded heat conduction." Common causes can be categorized into the following five types, which even beginners can quickly identify:

- Heating wire winding/arrangement issues: This is the most crucial internal cause. If the heating wire is wound unevenly during production (some areas are wound too densely, resulting in low resistance and concentrated power; some areas are wound too sparsely, resulting in high resistance and insufficient power), or if the heating wire shifts or deforms due to vibration or high temperature, it will directly lead to concentrated or dispersed heating points, manifesting as localized overheating or localized underheating.

- Inadequate internal magnesium oxide powder filling: Single-ended heating elements are typically filled with magnesium oxide powder, which serves to insulate, conduct heat, and secure the heating wire. If the filling is not tight, gaps exist, or impurities are introduced during filling, heat conduction will be impaired. Heat from the heating wire in the gaps cannot dissipate quickly enough, resulting in locally overheated areas while other areas heat up weakly due to insufficient heat conduction.

- Severe surface scaling/carbon buildup: Over time, scale, grease, or carbon deposits will form on the surface of the heating element due to contact with water, oil, and other materials. These substances have extremely poor thermal conductivity and will coat the surface of the heating element, hindering heat dissipation. This leads to locally overheated areas (where the scale is thick, heat accumulates), while the areas that actually need heating remain cold, creating the illusion of "hot outside, cold inside."

- Improper installation and poor contact: If the heating element is not tightly fitted to the object being heated (such as a mold or cylinder), leaving gaps, or if it is not securely fixed and vibrates, it will cause a situation of "localized contact heat conduction and localized suspended heat dissipation." Heat is rapidly conducted to the contact points, resulting in normal temperature. However, heat cannot be transferred to the suspended parts in time, leading to uneven heating.

- Power Supply Voltage/Circuit Abnormalities: Unstable power supply voltage or contact resistance in the circuit (such as loose terminals or aging wires) can cause fluctuations in the actual input power of the heating element. Some areas may experience weak heating due to insufficient power, or even intermittent heating.

II. Targeted Solutions: From Easy to Difficult, Step-by-Step Troubleshooting

It is recommended to troubleshoot and resolve issues in the order of "external before internal, simple before complex" to avoid secondary damage from blind disassembly:

1. Basic Troubleshooting: No disassembly required, quickly eliminate simple problems

This step mainly targets external factors such as "surface, installation, and circuit." Beginners should prioritize this step:

- Cleaning Surface Dirt: Turn off the power and wait for the heating element to cool completely. Use sandpaper, a wire brush, or a special descaling agent (such as citric acid for limescale removal and alcohol for grease removal) to clean the surface of scale, carbon deposits, and grease, ensuring the surface is clean and free of debris. When cleaning, apply moderate pressure to avoid scratching the heating element's outer casing (stainless steel is easily scratched, affecting its corrosion resistance).

- Check the installation fit: Re-secure the heating element, ensuring it fits tightly against the object being heated without any noticeable gaps. If the contact surface is uneven, place a thermally conductive silicone pad (high-temperature resistant) between the heating element and the object to enhance heat conduction. Also, check that the fixing screws are not loose to prevent poor contact due to vibration during operation.

- Check the circuit and voltage: Use a multimeter to measure the power supply voltage to confirm it matches the heating element's rated voltage (commonly 220V or 380V). Voltage fluctuations should be controlled within ±10%. Check that the wiring terminals are not loose or oxidized. If there is an oxide layer, clean it with sandpaper and tighten it again. Check that the wire specifications are compatible to avoid insufficient current due to thin wires.

2. Advanced Troubleshooting: Disassembly and Inspection to Resolve Internal/Structural Issues

If uneven heating persists after basic troubleshooting, further inspection of the heating element's internal structure is required (recommended for professional operation to avoid electric shock or damage to internal components):

- Check the heating wire condition: Disconnect the heating element's terminals and use a multimeter to measure the heating element's total resistance. Compare this to its rated resistance (rated resistance = rated voltage²/rated power). If the resistance deviation exceeds ±5%, it indicates that the heating wire may have localized burnout, displacement, or uneven winding. If possible, observe the internal heating wire arrangement using an endoscope. If significant displacement, deformation, or localized blackening (burn marks) is observed, the heating wire or the entire heating element needs to be replaced.

- Check the magnesium oxide powder filling: If the heating element exhibits "localized overheating followed by breakage," it is highly likely that the magnesium oxide powder filling is inadequate. Repairing this is difficult because refilling the magnesium oxide powder requires specialized equipment (high-temperature sintering furnace), which is beyond the capabilities of ordinary users. Replacing the heating element with a new one is recommended.

- Check for casing deformation: If the heating element casing is bent, dented, or deformed, it will cause the internal heating wire to shift, affecting the fit with the heated object. Minor deformation can be manually corrected (gently, to avoid cracking the casing), while severe deformation requires replacement of the heating element.

3. Special Cases: Uneven Heating Due to Environment/Operating Conditions

If the above checks are all correct, consider the influence of the operating environment:

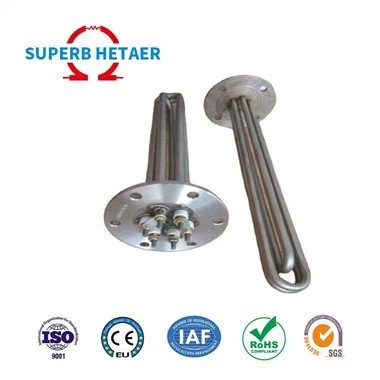

- Uneven heating medium: If the heating element is used for liquid heating (such as water tanks or oil tanks), poor liquid convection (such as the absence of a stirring device) will cause areas near the heating element to be too hot, while areas further away will be too cold, appearing as "uneven heating." Solution: Add a stirring device or adjust the installation position of the heating element (such as installing it in a liquid circulation channel).

- Uneven environmental heat dissipation: If parts of the heating element are close to heat dissipation vents, ventilation areas, or blocked by other low-temperature components, localized heat loss will occur, resulting in uneven heating. Solutions: Adjust the position of the heating element to avoid direct heat dissipation areas, or insulate areas with excessive heat dissipation (wrapping with high-temperature resistant insulation cotton).

III. Daily Prevention: Reduce Uneven Heating and Extend Service Life

To effectively prevent uneven heating of single-ended heating elements and improve operational stability, follow these four points:

1. Regular Cleaning and Maintenance: Clean the surface of the heating element every 1-3 months, removing dirt and carbon deposits, depending on usage conditions. For applications with hard water (such as tap water heating), soak in a citric acid solution monthly to remove scale and prevent buildup.

2. Proper Installation and Use: Ensure the heating element is in close contact with the object being heated and securely fixed; avoid dry-burning (especially for dry-burning heating elements, which must be completely immersed in the heating medium before powering on); never exceed the rated voltage or power.

3. Optimize operating environment: Equip the heating element with a stirring device during liquid heating to ensure uniform convection of the medium; under high-temperature conditions, insulate the non-heating areas of the heating element to reduce heat loss; avoid prolonged exposure of the heating element to vibration, humidity, or corrosive environments.

4. Regular performance testing: Measure the resistance of the heating element with a multimeter every 6 months and compare it with the rated resistance. If the deviation exceeds ±5%, replace it immediately; check the terminals and wires for aging, and repair or replace any problematic parts promptly.

IV. Summary: Replacing the Heating Element Directly in These Situations Saves Time

If any of the following three situations occur, it is recommended to directly replace the single-ended heating element with a new one, avoiding wasting time on repairs:

- The heating wire is visibly burnt, displaced, or the magnesium oxide powder is not properly filled (manifesting as localized overheating followed by breakage or excessive resistance deviation);

- The outer casing is severely deformed, damaged, or has corrosion perforations (indicating compromised insulation and thermal conductivity);

- The heating element has been in use for more than 2 years (under normal operating conditions) and frequently exhibits uneven heating and power reduction (internal components are aged, making repair costly).

In short, uneven heating of single-ended heating elements is mostly caused by external dirt, improper installation, or abnormal internal structure. Following the approach of "basic troubleshooting → advanced processing → daily prevention" can quickly resolve the problem and effectively extend its lifespan. If you find it difficult to troubleshoot yourself, it is recommended to contact a professional repairman or the heating element manufacturer to avoid blindly operating and causing safety hazards.
